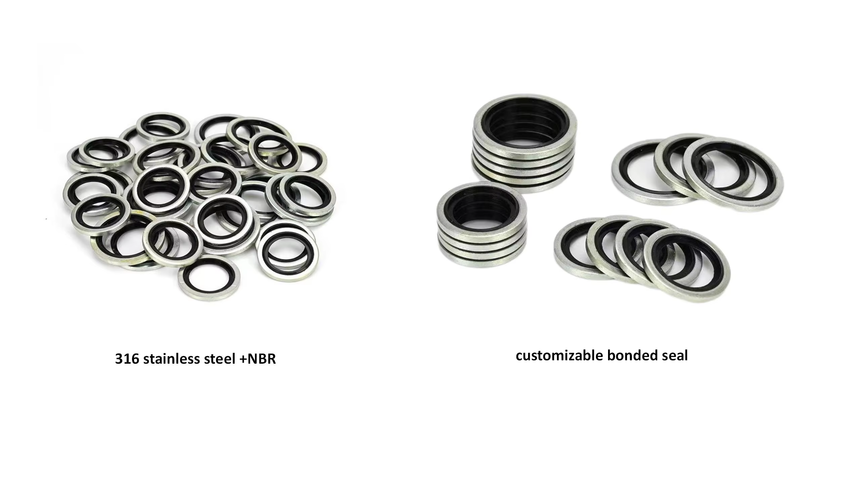

NBR Flat Composite Gasket Custom NBR Rubber Gasket Bonded Gasket

Type bonded gaskets

 Standard and self-centering, locking seal series, BODOK, etc

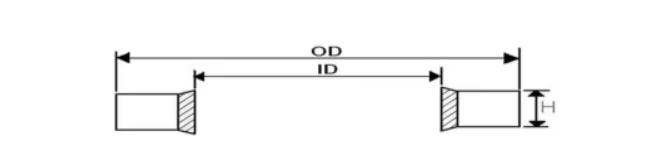

Standard Type Bonded Seal Diagram

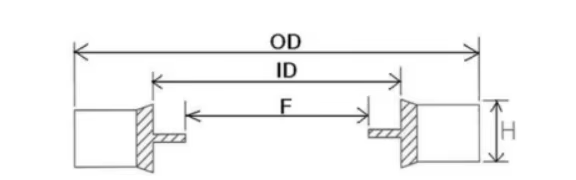

Diagram of a self-centering bonded gasket

What is an adhesive washer?

Bonded gasket seals, commonly referred to as Dowty seals, were originally designed to replace copper gaskets in high-pressure systems, and they consist of a metal gasket and an elastomeric ring that is held in place within the diameter. Metal gaskets prevent excessive compression and limit deformation of the elastomeric ring.

Adhesive gaskets are suitable for high-pressure seals and are used in mechanical, hydraulic and pneumatic fields. Ideal for under-head sealing of bolted and threaded assemblies for pipe fittings and a variety of connector applications where perfect face-to-face contact is required to seal gases, oils, and other liquids.

Adhesive Washer Features:

• Ideal pressure gaskets.

• Reliable sealing of high and low pressure systems or departments.

• High and low temperature capability

• Reduced bolt set, no loss of tightening load.

• The metal ring prevents the rubber from compressing.

The material on which the gasket is bonded

• Metals - mild steel, copper, stainless steel, brass, carbon, aluminum alloy, aluminum bronze, etc.

• Rubber-nitrile (NBR), Viton® (FKM/FPM), hydrogenated nitrile (HNBR) and ethylene propylene (EPDM), fluorosilicone (FVMQ).

• Plating - Zinc, Clear Passivation, Gold Passivation, Chromium Anodizing, Sulfuric Acid Anodizing, Iron and Black Chromate, Sherardze 2000

Adhesive gasket size

Metric and imperial sizes are available for top sealing.

Standard sizes and customizations are available for topseals.

• Bolt Size (English)

• BSP

• German Metric

• French metric

Metric bonded gasket sizes and imperial bonded gasket sizes are available in stock

The standards for bonded seals in metric sizes are as follows:

M6、M8、M10、M14、M16、M18、M20、M22、M24、M26、M27、M30、M33、M36、M39、M42、M45、M48、m52、M60

Self-centering bonded washers are available in both imperial and metric sizes

G1/8，G1/4，G3/8，G1/2，G5/8，G3/4，G1，G1-1/4，G1-1/2，G2

M8、M10、M14、M16、M18、M20、M22、M24、M27、M26、M30、M33、M36
