The ED ring DIN3869 fitted nitrile NBR beveled washer post end with fluid fitting seal

free samples available, welcome to contact

No price
Cumulative sales0Cumulative evaluation0
whatsapp

Collect
  • 商品说明
  • 商品参数
  • All the evaluation


ED8
6.5*9.9*1.0*0.5
ED30
26.7*32.7*2.0*1.0
ED10
8.4*11.9*1.0*0.5
ED33
29.7*35.7*2.0*1.0
ED12
9.8*14.4*1.5*0.8
ED36
32.7*38.7*2*1.0
ED14
11.6*16.5*1.5*0.8
ED39
35.7*41.7*2*1.0
ED16
13.8*18.9*1.5*0.8
ED42
38.8*45.8*2.0*1.0
ED17
14.7*18.9*1.5*0.8

41.9*48.9*3.5
ED18
15.7*20.9*1.5*0.8
ED48
44.4*50.7*2.0*1.0
ED20
17.8*22.9*1.5*0.8
ED50
50.4*56.7*2.5*1.25
ED21
18.5*23.9*1.5*0.8
ED60
56.1*62.7*2.5*1.25
ED22
19.6*24.3*1.5*0.8
ED60
56.5*66.5*4.0*2.0
ED24
21.8*26.9*1.5*0.8

71*81*5
ED27
23.9*29.2*1.5*0.8

83.8*91.8*4

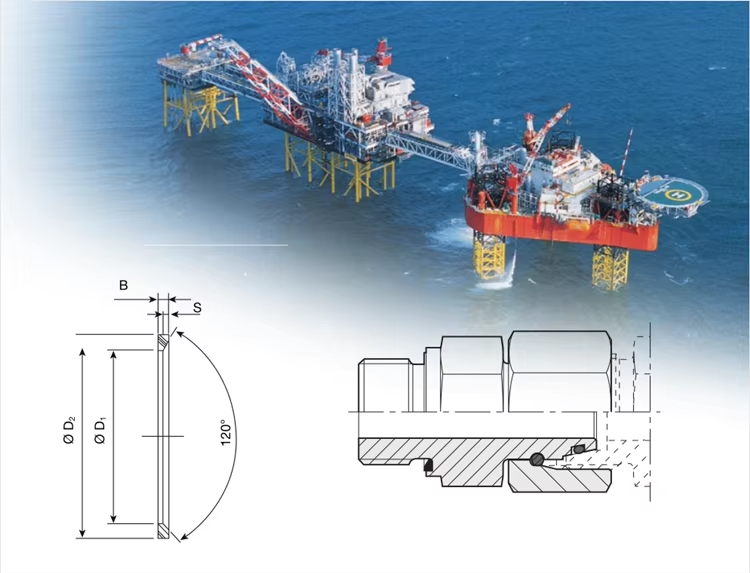

Fluid connectors are sealed according to the DIN3869



According to DIN 3869, ISO 11926, ISO 9974 and ISO 1179, this elastomer seal is used as an axial static seal on threaded ports and stud ends in hydraulic hydrodynamic applications.

Even at high pressures, the cross-section remains practically constant.





advantage
- Minimal mechanical deformation of the cross-section
- Excellent sealing performance over a long period of time
- No twisting in the grooves
- There is no relative movement during the pressure cycle
-Dimensionally stable under pressure

- High tightness compared to metal/metal seals



Examples of applications in hydraulic components, such as:
- Injection molding machines
-machine tool
- Presses
-excavator
-Agricultural machinery
- Valves for hydraulic circuits


Important attributes

Origin
Hebei, China
brand
Xintao
Model
DIN3869 ED Seal Fitting
standard
Ed ring
thickness
Any size
Product name
Threaded fitting seals
application
Threaded fittings
color
Black/Brown/Purple
size
DIN3869
type
ED-ring

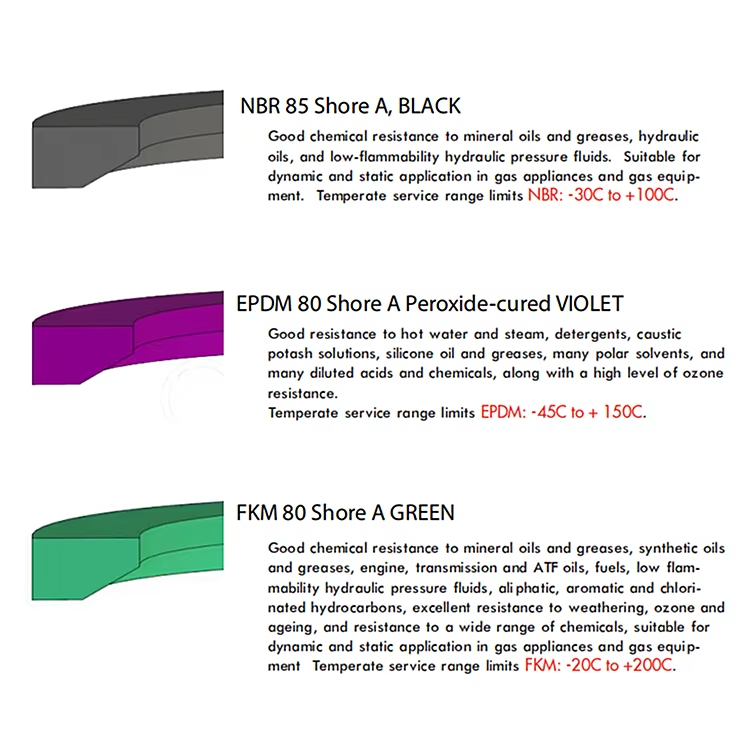

Type of material
NBR FKM EPDM
temperature
-50-250 C
function
High pressure resistance
sample
Avaiable
brand
Noanke

Packaging and shipping information

Sales Units
Single item
Individual package sizes
10X10X3 cm
Gross weight of a single product
0.010 KG
